ZCX has developed a state-of-the-art solution called the PT450 Coating Machine that is intended to completely transform the PCB (Printed Circuit Board) coating process. Because of its sophisticated technology, liquid materials are evenly distributed throughout the PCB surface thanks to a special dispensing valve that turns them into a fine vapor. This invention not only improves the quality of the coating but also solves the precision issues that older approaches frequently have.

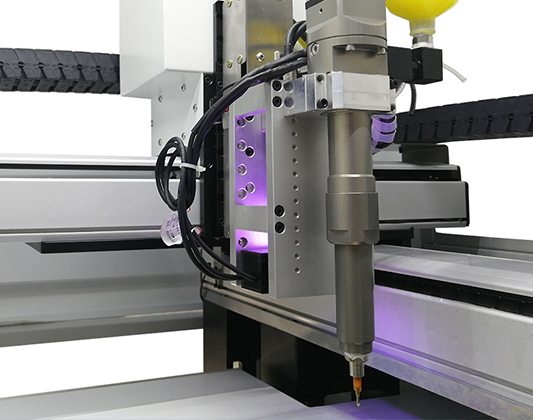

The PT450, which has a double-dispensing head, is able to overcome earlier manufacturing process barriers and handle coating complexities with impressive efficiency. ZCX provides a solution to these problems, enabling companies to increase overall productivity, optimize processes, and cut expenses related to material waste and rework.
The electronics sector uses the PT450 Coating Machine extensively, especially in the production of LED lighting systems. The PT450 Coating Machine, with ZCX's dedication to quality and innovation, is a big step forward in coating technology. It offers improved performance and dependability for companies in a range of electronics industry sectors.
CE Certified
1-Year Warranty
Technical Support
PCB
| ITEM | ZCX-PT450 |
| Dimension(L*W*H) | 1300*1800*1700mm |
| Working Platform | T16 Chrome Plate |
| Weight | 850kg |
| Control | PLC+LCD |
| Operating Model | Automatic/PC |
| Programming | Manual |
| Program Storage Quatity | >1000 |
| Track Height | 920±20mm |
| PCB Speed | 0-5000mm/min |
| PCB Direction | L→R (R→L） |
| PCB Width | 50-450mm |
| Speed Control | Automatic Adjustment |
| Driving Method | Stepping Motor+Dual High-precision Screw Rod |
| XY Axis Driving | Servo Motor+High-precision Screw Rod |
| XYZ Axis Speed | 800mm/s Max |
| XYZ Axis Repeatability | 0.01mm |
| Valve Driving | 2*Double Rod Cylinder |
| Valve Quantity | 2 Pcs |
| Valve Type | 1 High-precision Spraying Valve, 1 High-precision Dispensing Valve |
| PCB Size | Max: W450mm*L450mm*H100mm |
| Glue Tank | 10L Stainless Glue Steel Tank(with mixing function) |
| Washing Tank | 1-2L |
| Light Source | LED |
| Detecting Light Source | UV Lighting |
| Power Supply | AC220V 1800W |
| Air Pressure Range | 4-6kgf/cm2 |
